<h1>Technical Deep Dive: Path of Exile 2’s Passive Skill Tree Architecture</h1>

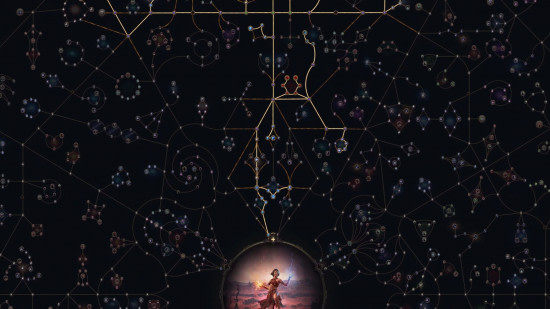

Path of Exile 2’s passive skill tree represents one of the most ambitious character progression systems in modern action RPGs. With over 1,500 interconnected nodes forming a massive graph structure, the system presents fascinating challenges in data architecture, rendering, and game design. This article explores the technical foundations that make this complex system possible.
<h2>Graph Theory at the Core</h2>
At its foundation, the passive skill tree is an undirected graph data structure where each node represents a passive skill and edges represent valid allocation paths. Unlike simpler tree structures found in most RPGs, Path of Exile 2’s system allows for multiple paths to reach the same destination, creating a true network topology.
The graph exhibits several key properties:
<ul>
<li>Connectivity: All nodes are reachable from any class starting position given sufficient points</li>
<li>Clustering: Nodes are organized into logical groups that share thematic purposes (damage clusters, defense clusters, etc.)</li>
<li>Hierarchical weighting: Different node types (Small Passives, Notables, Keystones) have varying “costs” in terms of path efficiency</li>
</ul>
<h2>Data Structure and JSON Schema</h2>
Grinding Gear Games exports the skill tree data in a well-documented JSON format, publicly available through their GitHub repository. The schema contains several critical components:
<h3>Node Objects</h3>
Each node in the tree is defined with the following properties:
<pre><code class="language-json">{
 &quot;id&quot;: 57279,
 &quot;icon&quot;: &quot;Art/2DArt/SkillIcons/passives/KeystoneBloodMagic.png&quot;,
 &quot;ks&quot;: true, // Is Keystone
 &quot;not&quot;: false, // Is Notable
 &quot;dn&quot;: &quot;Blood Magic&quot;, // Display Name
 &quot;isJewelSocket&quot;: false,
 &quot;sd&quot;: [&quot;Removes all mana. Spend Life instead of Mana for Skills&quot;],
 &quot;g&quot;: 451, // Group ID
 &quot;o&quot;: 0, // Orbit index
 &quot;out&quot;: [3644, 56143], // Outgoing connections
 &quot;in&quot;: [] // Incoming connections
}
</code></pre>
The <code>out</code> and <code>in</code> arrays define the adjacency list for graph traversal, enabling efficient pathfinding algorithms when calculating valid allocations.
<h3>Group Organization</h3>
Nodes are organized into groups that define spatial clustering:
<pre><code class="language-json">{
 &quot;groups&quot;: {
 &quot;15&quot;: {
 &quot;x&quot;: 3424.24,
 &quot;y&quot;: 3807.71,
 &quot;oo&quot;: { &quot;1&quot;: true },
 &quot;n&quot;: [45033, 53324, 15344]
 }
 }
}
</code></pre>
The <code>x</code> and <code>y</code> coordinates define the group’s position in the tree’s coordinate space, while the <code>n</code> array lists all node IDs belonging to that group. This grouping system enables efficient spatial queries and rendering optimizations.
<h2>Coordinate System and Rendering</h2>
The skill tree uses a Cartesian coordinate system with bounds defined by <code>min_x</code>, <code>max_x</code>, <code>min_y</code>, and <code>max_y</code> properties. The official implementation supports multiple zoom levels (<code>imageZoomLevels</code>), each with pre-rendered sprite sheets for performance optimization.
<h3>Sprite Sheet Architecture</h3>
Rather than loading individual images for each of the 1,500+ nodes, the system uses sprite atlases:
<pre><code class="language-json">{
 &quot;skillSprites&quot;: {
 &quot;mastery&quot;: [{
 &quot;filename&quot;: &quot;skill_sprite-active-0-4ea513d186d9e...png&quot;,
 &quot;coords&quot;: {
 &quot;Art/2DArt/SkillIcons/passives/MasteryGroupMana.png&quot;: {
 &quot;w&quot;: 32, &quot;h&quot;: 32, &quot;y&quot;: 96, &quot;x&quot;: 128
 }
 }
 }]
 }
}
</code></pre>
This approach dramatically reduces HTTP requests and enables smooth zooming and panning interactions critical for navigating such a large visualization.
<h2>The Three-Attribute Design Philosophy</h2>
Path of Exile 2’s tree is architecturally divided into three primary sectors corresponding to the core attributes:
<table>
<thead>
<tr>
<th>Attribute</th>
<th>Color</th>
<th>Typical Node Focus</th>
</tr>
</thead>
<tbody>
<tr>
<td>Strength</td>
<td>Red</td>
<td>Life, Melee Damage, Armor</td>
</tr>
<tr>
<td>Dexterity</td>
<td>Green</td>
<td>Evasion, Attack Speed, Ranged</td>
</tr>
<tr>
<td>Intelligence</td>
<td>Blue</td>
<td>Mana, Spell Damage, Energy Shield</td>
</tr>
</tbody>
</table>
The tree’s layout creates natural “highways” of attribute nodes (+5 Str/Dex/Int) that connect these sectors, allowing hybrid builds to traverse between regions. These attribute nodes can be dynamically respecced at reduced cost, providing flexibility for meeting equipment requirements.
<h2>Node Type Hierarchy</h2>
The system implements four distinct node categories, each with different visual representations and gameplay impact:
<h3>1. Small Passives (Minor Nodes)</h3>
The most numerous type, providing incremental bonuses (typically 3-8% increases). These form the “connective tissue” of the tree.
<h3>2. Attribute Nodes (Travel Nodes)</h3>
Marked with a cross symbol, these provide +5 to Strength, Dexterity, or Intelligence. Their attribute type is mutable at half the normal respec cost.
<h3>3. Notable Passives</h3>
Significantly more powerful than small passives, often found at the terminus of passive clusters. They typically provide 15-30% bonuses or unique mechanics.
<h3>4. Keystones</h3>
Build-defining nodes that fundamentally alter gameplay mechanics, always featuring both powerful benefits and meaningful drawbacks. Examples include:
<ul>
<li>Mind Over Matter: Redirects damage to mana pool, but reduces mana regeneration by 50%</li>
<li>Giant’s Blood: Allows two-handed weapons in one hand, but doubles attribute requirements</li>
<li>Chaos Inoculation: Grants immunity to Chaos damage but sets maximum life to 1</li>
</ul>
<h2>Weapon Specialization System</h2>
Path of Exile 2 introduces a novel dual-tree system tied to weapon swapping:
<pre><code>Total Skill Points = Global Points + Weapon Set Points (up to 24)
</code></pre>
Players earn Weapon Set Passive Skill Points through campaign progression, which can be allocated differently per weapon set. The UI represents these with distinct colors:
<ul>
<li>White/Default: Globally allocated (always active)</li>
<li>Red: Weapon Set I specific</li>
<li>Green: Weapon Set II specific</li>
</ul>
This creates a state machine where passive configurations dynamically swap based on the equipped weapon set, enabling builds like:
<ul>
<li>Melee AoE (Set 1) ↔ Single-target Ranged (Set 2)</li>
<li>Defensive Shield Setup ↔ Offensive Dual-wield Setup</li>
</ul>
<h2>Ascendancy Sub-Trees</h2>
Beyond the main passive tree, each class gains access to an Ascendancy skill tree after completing Ascension Trials. These are implemented as separate graph structures with their own point pool (up to 8 Ascendancy points).
The Ascendancy trees use the same underlying JSON schema but are rendered within the central circle of the main tree, maintaining visual and data separation while sharing the core rendering infrastructure.
<h2>URL Serialization for Build Sharing</h2>
Build configurations are serialized into shareable URLs using a compact binary format:
<ol>
<li>Header: Version, class ID, ascendancy ID</li>
<li>Node List: Bit-packed array of allocated node IDs</li>
<li>Mastery Selections: Additional data for mastery choices</li>
</ol>
The binary stream is then base64url-encoded (RFC 4648) to create portable URLs like:
<pre><code>https://pathofexile.com/passive-skill-tree/3.15.0/AAAABQMADAQHES0...
</code></pre>
This encoding achieves significant compression compared to raw JSON while remaining URL-safe.
<h2>Respec Economy and Dynamic Pricing</h2>
The respec system implements a dynamic pricing model where costs scale with:
<ul>
<li>Character level</li>
<li>Depth of investment in the tree</li>
<li>Node type (attribute nodes receive 50% discount)</li>
</ul>
This creates meaningful economic decisions while still permitting experimentation—a careful balance between flexibility and commitment.
<h2>Performance Considerations</h2>
Rendering 1,500+ interactive nodes with connections requires significant optimization:
<ol>
<li>Spatial Partitioning: Only visible nodes are rendered based on viewport</li>
<li>Level of Detail: Different zoom levels use appropriately sized sprites</li>
<li>Connection Culling: Edges outside the viewport are not drawn</li>
<li>Event Delegation: Mouse events use spatial hashing rather than per-node listeners</li>
</ol>
Third-party planners like Path of Building, Maxroll, and poe.ninja implement similar optimizations, often using HTML5 Canvas or WebGL for smooth 60fps interaction.
<h2>Conclusion</h2>
Path of Exile 2’s passive skill tree is a masterclass in game systems engineering—combining graph theory, efficient data serialization, intelligent rendering, and thoughtful game design into a cohesive whole. The public JSON export and developer documentation have spawned a rich ecosystem of community tools, demonstrating how technical transparency can enhance player engagement far beyond the game itself.
For developers interested in implementing similar systems, the key lessons are: embrace graph structures for non-linear progression, invest heavily in data serialization for sharing, and never underestimate the power of well-documented public APIs for community engagement.
