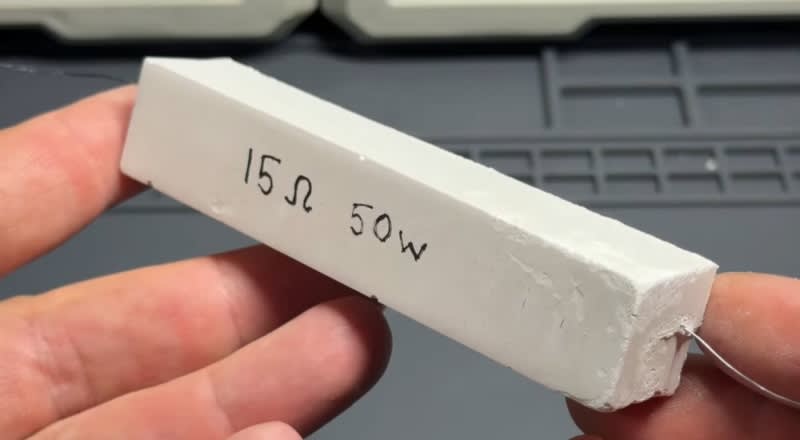

A hands-on tutorial covering how to build a DIY nichrome wirewound power resistor from scratch. The process involves winding nichrome wire (a nickel-chromium alloy with ~1.12 µΩ/m resistivity) around an alumina ceramic tube, then embedding the assembly in refractory cement for thermal stability. The example targets 15 Ohm at 50W, requiring 1.44 meters of wire. Key considerations include the inability to solder nichrome (requiring crimped connections), winding inductance effects, and the choice of core material and encapsulant. While not cost-effective compared to off-the-shelf parts, it's educational for hobbyists with specific needs.
