In my previous post, we looked at the “sound barrier” of x86_64 linking: the 32-bit relative CALL instruction and how it can result in relocation overflows. Changing the code-model to -mcmodel=large fixes the issue but at the cost of “instruction bloat” and likely a performance penalty although I had failed to demonstrate it via a benchmark 🥲.

Farid Zakaria’s Blog

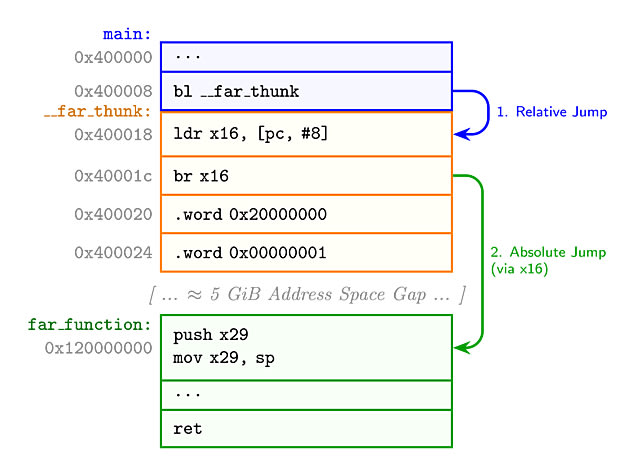

Linker thunks (trampolines) offer a solution for building huge static binaries beyond 2GiB on x86_64 without switching to the large code model. While architectures like AArch64 already use thunks due to instruction size limitations, x86_64 lacks this support despite its potential benefits. Thunks allow most code to remain in the efficient small code model by inserting intermediate jumps only where needed, similar to how PLT works for dynamic linking. This approach could enable massive static binaries while avoiding the instruction bloat and performance penalties of large code models, though it requires extending LLVM's linker to support thunks for x86_64 CALL instructions and GOT access patterns.

Huge binaries: I thunk therefore I am
