Driving WS2812Bs With Pure Logic

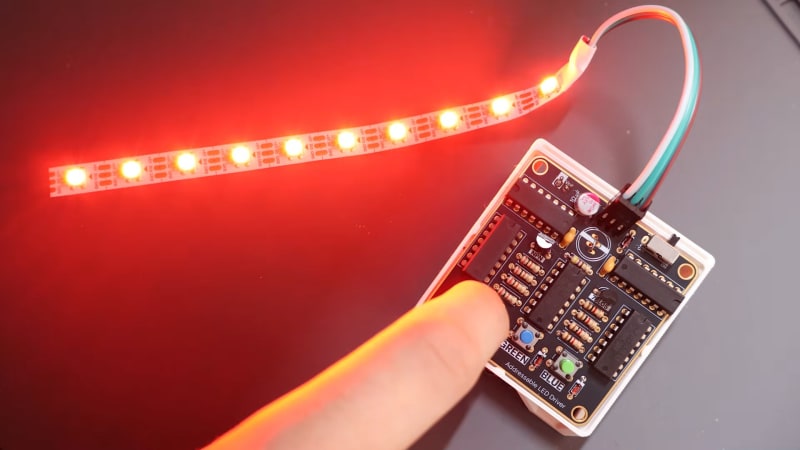

A hardware project demonstrates driving WS2812B addressable LEDs using only discrete logic ICs, with no microcontroller involved. A 74HC14 Schmitt trigger oscillator generates an 800 kHz clock, while a phase-shifted AND gate produces the shorter pulses for logic zero. A binary counter cycles through 24 bits for RGB color data, Show more
