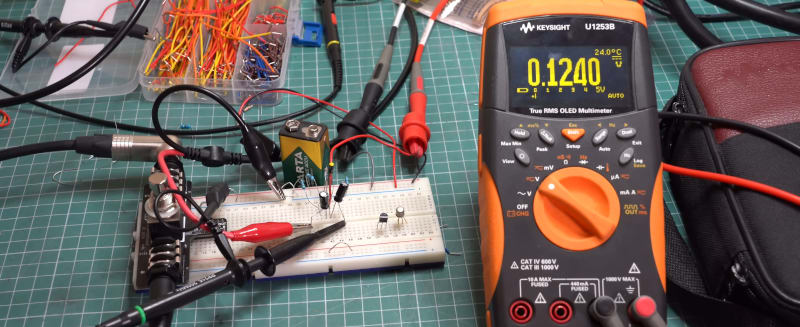

A walkthrough of designing a common emitter amplifier using bipolar junction transistors. The design process starts with input parameters like gain, collector voltage, and collector current, then uses simplified assumptions (Ic=Ie, negligible base current) to calculate component values. The tutorial covers the mathematical approach to determining resistor values and biasing points, acknowledging that real-world variations in component tolerances and temperature require flexibility. The design is validated on a breadboard to compare predicted versus actual performance.
